Details
The 2023 Curb, which is available in four great colorways, offers the entry-level rider a bike that looks and feels like a pro model without the price tag. Whether you choose Matte Midnight Black, Matte Gold Leaf Matte Alps Blue, or Matte Mica Green you are getting an amazing bike.
Featuring modern geometry and outfitted with components such as 8.75" Kink T875 bars, 3-piece tubular chromoly cranks, a raised Mission Control topload stem, softer Kink Ace grips with push-in Kink Thrust bar ends, and 2.4" tires front and rear; the Curb is perfect for any rider looking for a solid first bike.
Toptube Length | 20" |
---|---|
Chainstay Length | 13.25" |
Headtube Angle | 74.5° |
Seattube Angle | 71° |
Standover Height | 8.5" |
Bottom Bracket Height | 11.6" |
Fork Offset | 32mm |
Rider Height (in) | Rider Height (cm) | Bike Size | Top Tube Length |
---|---|---|---|
2' 4" - 3' 0" | 71 - 91 cm | 12" | 12" - 12.5" |
2' 8" - 3' 6" | 81 - 106 cm | 14" | 14" - 14.5" |
3' 2" - 4' 0" | 96 - 122 cm | 16" | 16" - 16.5" |
4' 0" - 4' 10" | 122 - 147 cm | 18" | 18" - 18.5" |
4' 10" - 5' 3" | 147 - 157 cm | 20" | 19.75" - 20.25" |
5' 3" - 5' 6" | 157 - 168 cm | 20" | 20" - 20.5" |
5' 6" - 5' 9" | 168 - 175 cm | 20" | 20.25" - 20.75" |
5' 9" - 6' 0" | 175 - 183 cm | 20" | 20.5" - 21" |
6' 0" - 6' 3"+ | 183 - 190 cm + | 20" | 20.75" - 21.5" |
Specs
Frame | Kink Curb 100% Hi-Ten Steel |
---|---|
Fork | Kink Lance 100% Hi-Ten Steel Tapered Fork Legs |
Rims | Mission X7 |
Hubs |
Front: Mission Reserve Unsealed 3/8" Axle Rear: Mission Function Semi-Sealed Cassette 14mm |
Tires | Mission Tracker 2.4" |
Bottom Bracket | Unsealed American 19mm |
Crankset | Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline |
Chainrings | Mission Breach 25T |
Cassette/Freewheel | 9T |
Chain | Mission 410 |
Brakes | Mission Cease V2 |
Brake Levers | Mission Token |
Handlebars | Kink T875 8.75" 100% Hi-Ten Steel |

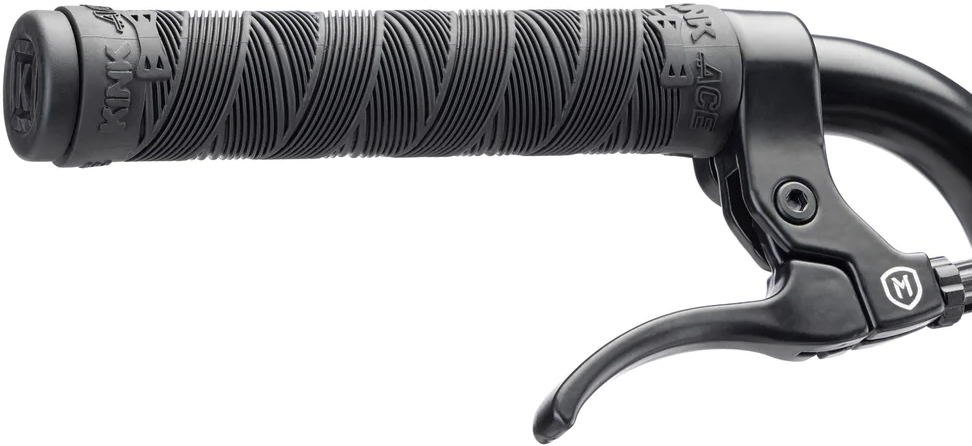

Tape/Grips | Kink Ace, Thrust Barends |
Stem | Mission Control TL 50mm |
Headset | Standard 1 1/8" Threadless |
Seatpost | Mission Combo Steel Post |
Saddle | Mission Warsaw Combo |
Pedals | Kink Hemlock |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Mica Green / 20-inch | 680031744243 | BK400GRN23 | 210000027066 |
Matte Alps Blue / 20-inch | 680031744236 | BK400BLU23 | 210000027065 |
Matte Gold Leaf / 20-inch | 680031744229 | BK400GLD23 | 210000027379 |
