Details
The Gap is a versatile machine ready to handle anything you throw at it. Featuring modern geometry, the frame, fork, and bars add 4130 chromoly into the mix, and is available in both Matte Baked Red and Matte Iridescent Mocha colorways. Components found on the Gap take things up a notch and are not to be missed.
Not only will it look the part, the 9" Kink T900 bars, Kink Stryker forks, Kink Bold HRD stem, sealed Mission Engage cassette hub, and Kink Ridge 3-piece tubular chromoly cranks help it to feel and perform the part. The addition of a Stealth seat and seat post are not to be overlooked either and add both adjustability and modern compatibility. Modern frame geometry brings a lower bottom bracket and raised standover height to the Gap, for a stable ride.
Toptube Length | 20.5" |
---|---|
Chainstay Length | 13.25" |
Headtube Angle | 75° |
Seattube Angle | 71° |
Standover Height | 9" |
Bottom Bracket Height | 11.6" |
Fork Offset | 32mm |
Rider Height (in) | Rider Height (cm) | Bike Size | Top Tube Length |
---|---|---|---|
2' 4" - 3' 0" | 71 - 91 cm | 12" | 12" - 12.5" |
2' 8" - 3' 6" | 81 - 106 cm | 14" | 14" - 14.5" |
3' 2" - 4' 0" | 96 - 122 cm | 16" | 16" - 16.5" |
4' 0" - 4' 10" | 122 - 147 cm | 18" | 18" - 18.5" |
4' 10" - 5' 3" | 147 - 157 cm | 20" | 19.75" - 20.25" |
5' 3" - 5' 6" | 157 - 168 cm | 20" | 20" - 20.5" |
5' 6" - 5' 9" | 168 - 175 cm | 20" | 20.25" - 20.75" |
5' 9" - 6' 0" | 175 - 183 cm | 20" | 20.5" - 21" |
6' 0" - 6' 3"+ | 183 - 190 cm + | 20" | 20.75" - 21.5" |
Specs
Frame | Kink Gap 100% 4130 Chromoly HT, TT and DT |
---|---|
Fork | Kink Stryker 4130 Chromoly Steerer, Tapered Fork Legs |
Rims | Mission X7 |
Hubs |
Front: Mission Covert Unsealed 3/8" Axle Rear: Mission Engage Sealed Cassette 14mm |
Tires | Kink Sever 2.4" |
Bottom Bracket | Sealed Mid 19mm |
Crankset | Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline |
Chainrings | Mission Breach 25T |
Cassette/Freewheel | 9T |
Chain | Mission 410 |
Brakes | Mission Cease V2 |

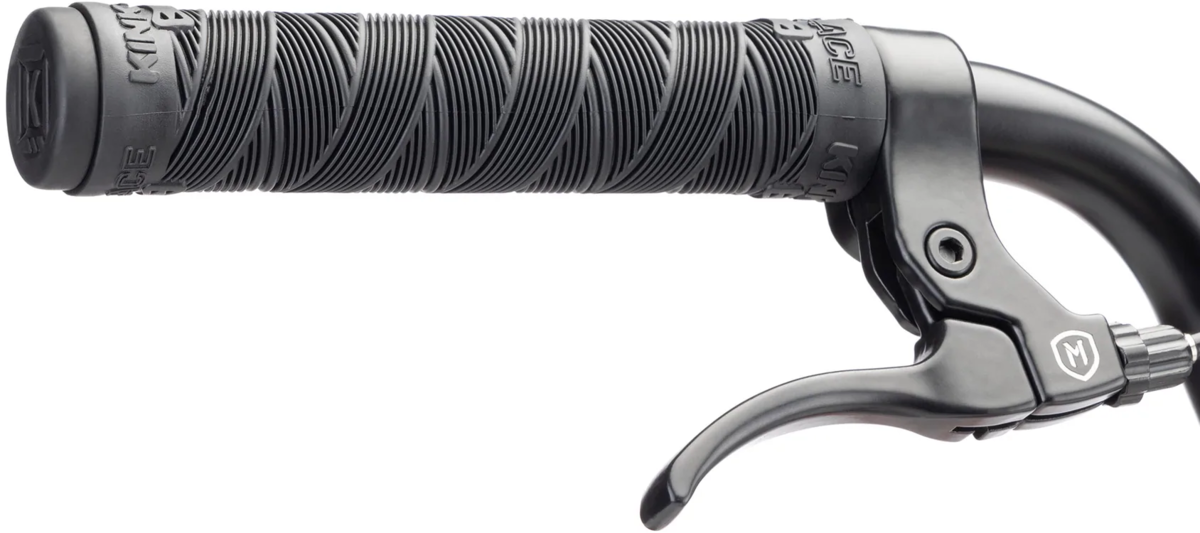

Brake Levers | Mission Token |
Handlebars | Kink T900 9" 100% 4130 Chromoly |
Tape/Grips | Kink Ace Flangeless |
Stem | Kink Bold HRD 50mm |
Headset | Mission Sealed Integrated (41.8 x 45) |
Seatpost | Mission Stealth |
Saddle | Kink Plymouth Stealth |
Pedals | Kink Hemlock |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Matte Baked Red / 20.5-inch | 680031744298 | BK430RED23 | 210000027070 |
Matte Iridescent Mocha / 20.5-inch | 680031744304 | BK430BRN23 | 210000027380 |
